Rethinking Pressure Relief as Systems Evolve

Across the process industries, engineers and safety leaders face growing expectations to demonstrate not only regulatory compliance, but operational resilience. Aging assets, evolving feedstocks, production intensification and heightened scrutiny around safety and environmental performance have shifted pressure relief from a static design task to an ongoing risk management responsibility.

In this context, pressure relief devices remain the safeguard of last resort. Yet they are still frequently approached as a box-checking requirement rather than as part of an integrated protection system that must reflect how facilities actually operate today. Relief valves and rupture discs do not control processes and they do not compensate for weak operating discipline. Their sole purpose is to protect people, equipment and the environment when abnormal conditions exceed design limits.

That protection is only as reliable as the assumptions behind it. Proper relief device sizing depends on credible worst-case scenarios and accurate physical property data at relieving conditions. When either is incomplete or outdated, latent risk accumulates quietly until an upset exposes it.

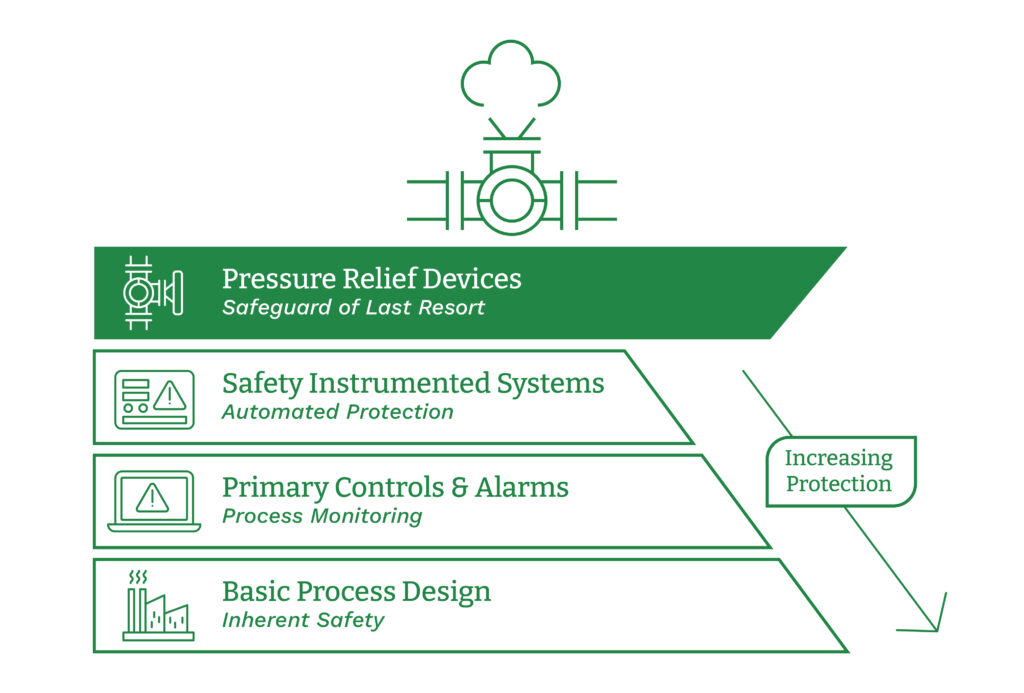

Figure 1. Layers of protection and the role of pressure relief
A simplified layer-of-protection diagram showing basic process control, alarms/interlocks, operator response and pressure relief as the final safeguard. Pressure relief is the last independent layer protecting people, assets and the environment when all other layers fail.

Why pressure relief devices are essential

Pressure-containing systems are routinely exposed to disturbances that can drive internal pressure beyond safe limits. These initiating events are often subtle rather than dramatic. A blocked outlet, loss of cooling, control valve failure or gradual heat input can all increase pressure faster than normal control systems can respond. Other scenarios, including external fire exposure or runaway reactions, can escalate far more rapidly.

When upstream safeguards fail or are overwhelmed, a properly designed relief device provides a controlled path for pressure reduction. Without this final layer of protection, vessels, piping and heat exchangers may exceed their mechanical limits, leading to rupture, loss of containment or structural failure. Pressure relief systems exist to prevent these outcomes when every other protection layer has been exhausted.

When relief devices are improperly sized

Relief sizing errors generally fall into two categories: undersizing and oversizing. Both introduce risk, though through different mechanisms.

Undersizing: when protection is insufficient

An undersized relief device cannot pass the required flow at relieving conditions. Even after the device opens, system pressure may continue to rise. In practice, this can result in mechanical failure of pressure equipment, uncontrolled release of hazardous materials, serious injury or fatality, environmental harm and extended outages accompanied by costly repairs and regulatory scrutiny.

Oversizing: a false sense of conservatism

Oversizing is often assumed to be conservative, but it introduces its own operational hazards. Valves that are too large for the actual relieving flow may become unstable, leading to chatter, repeated opening and closing, and internal mechanical damage. Oversized valves may also fail to reseat properly, creating continuous leakage or fugitive emissions.

Oversizing carries economic consequences as well. Larger valves require larger inlet and outlet piping, heavier supports and higher-rated flanges, increasing capital cost without improving safety performance.

In both cases, the underlying issue is typically the same. The assumed relief scenario or fluid behavior used during design does not reflect how the system behaves under real upset conditions.

Why physical property data matters

Relief sizing is fundamentally a thermodynamics and fluid flow problem. A device’s discharge capacity depends on the physical properties of the relieving fluid at relieving pressure and temperature, not at normal operating conditions or nominal nameplate values.

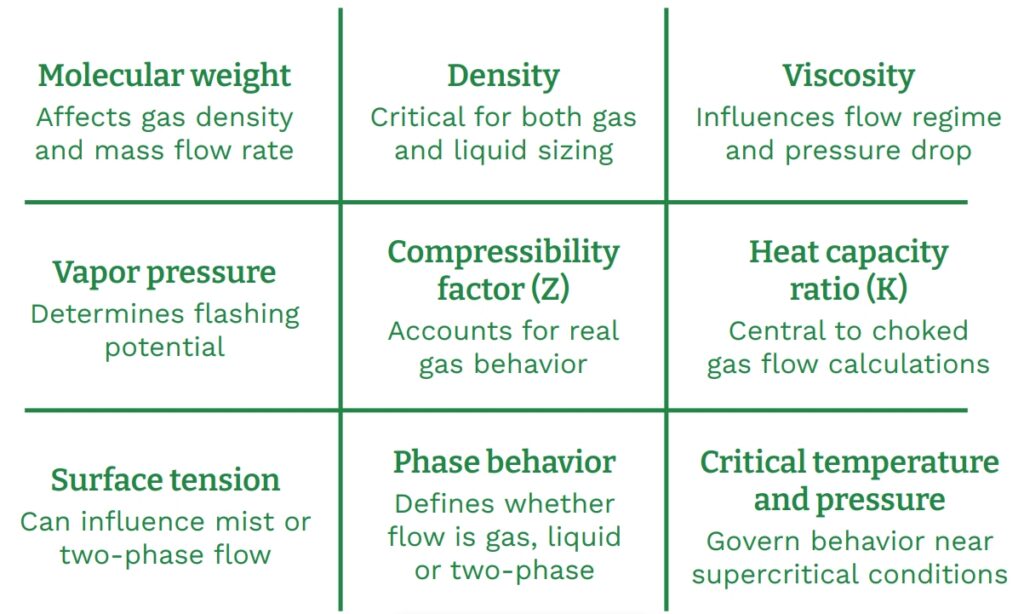

Key properties influencing relief performance include:

Errors in any of these inputs propagate directly into the calculated orifice area. Even small deviations can translate into large sizing differences, particularly when relieving conditions approach phase boundaries.

The overlooked importance of critical properties

Critical temperature and critical pressure define the point at which liquid and vapor phases become indistinguishable. Near this region, fluid properties can shift rapidly with modest changes in pressure or temperature.

When relief scenarios approach or exceed critical conditions, common simplifying assumptions often break down. Streams assumed to relieve as single-phase vapor may partially condense or form a mist. Density, viscosity and compressibility can deviate significantly from values predicted by basic correlations. Calculations that appear conservative on paper may under predict actual relief requirements.

This dynamic is a frequent contributor to undersized relief devices. The methodology may comply with recognized standards, but the property data fails to represent fluid behavior accurately near the critical region. When an upset occurs, the valve does not perform as expected.

Consequences of assumed or outdated data

Using inaccurate or poorly validated property data has tangible consequences. Relief devices may be incorrectly sized or selected for the wrong flow regime. During relief events, facilities may experience unexpected two-phase flow, excessive emissions or mechanical damage to valves and downstream equipment.

Over time, these issues can create gaps between documented compliance and actual performance. Designs that once appeared acceptable may no longer meet the intent of applicable codes and standards as operating conditions, compositions or throughput change.

These failures are rarely caused by calculation mistakes. They are far more often rooted in assumptions that were never revisited.

Obtaining and validating reliable data

High-quality physical property data is not always readily available, particularly for mixtures, proprietary fluids or nonstandard operating ranges. Engineers commonly rely on process simulation tools such as Aspen HYSYS, UniSim or PRO/II, supported by curated databases including DIPPR, NIST and API references. In some cases, laboratory testing is necessary to close data gaps.

Vendor-supplied data can be useful, but it should be reviewed critically and validated against expected relieving conditions. One of the most common contributors to relief sizing errors is the use of properties representative of normal operation rather than relief scenarios.

Standards guide the process, judgment ensures safety

Relief system design is governed by established standards, including API 520 and API 521, ASME Section I for power boilers and ASME Section VIII for pressure vessels. These standards define calculation methods, allowable assumptions and minimum safety margins.

Standards alone do not ensure safe outcomes. Their effectiveness depends on realistic scenario definition and accurate representation of fluid behavior. Sound relief sizing relies on engineering judgment informed by operating history, process knowledge and a willingness to challenge legacy assumptions as systems evolve.

Practical steps to strengthen relief integrity

Pressure relief devices protect people, assets and the environment when all other safeguards fail. Their reliability depends on disciplined scenario identification, credible modeling and validated physical property data.

Leaders seeking to reinforce pressure relief performance can take several concrete actions:

• Integrate relief scenario review into formal management of change workflows
• Recalculate relief loads when throughput, composition or heat integration changes
• Validate thermodynamic models against credible data sources
• Conduct periodic relief system audits, particularly for high-hazard units
• Train engineers on near-critical fluid behavior and two-phase discharge dynamics

Moving from compliance to confidence Well-executed relief sizing strengthens operational confidence and rarely demands attention because it performs exactly as intended. When organizations invest early in reassessing assumptions, validating data and revisiting relief scenarios as operations evolve, they reduce uncertainty and build measurable resilience into their systems.

Organizations that treat pressure relief as a living system, integrated with process knowledge and change management, position themselves for stronger safety performance, smoother regulatory engagement and more reliable operations over time.
